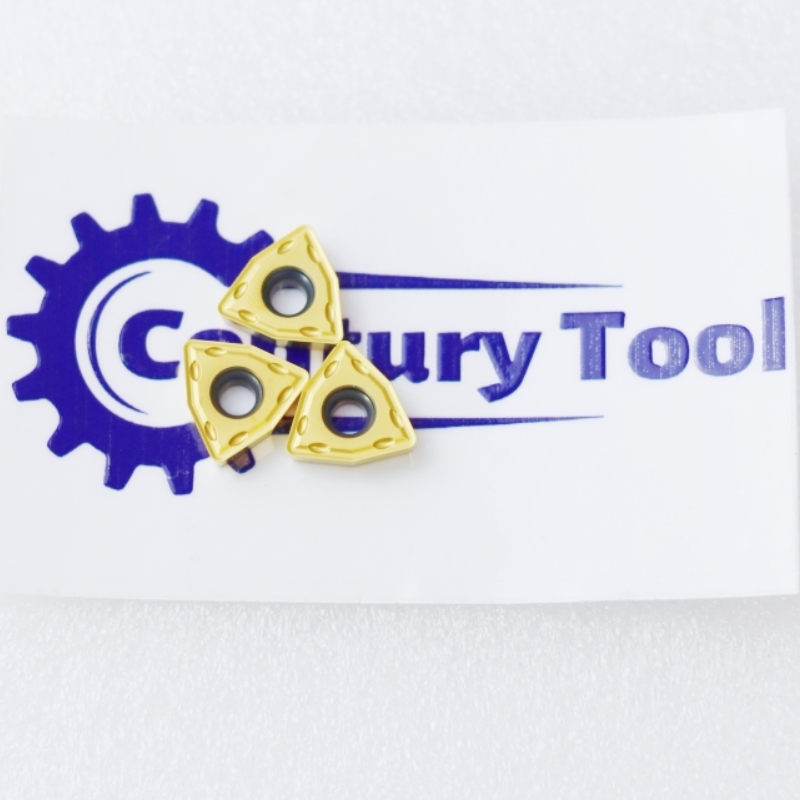

Technical Analysis: WCMX/WCMT Series Carbide Inserts for U-Drills

Introduction

Zhuzhou Century Tool Co., Ltd. specializes in manufacturing high-performance carbide inserts engineered for demanding drilling applications. The WCMX/WCMT series for U-Drills (indexable drills) represents a fusion of advanced material science, precision engineering, and rigorous quality control. Designed to enhance drilling efficiency across diverse industries—including metallurgy, petroleum, and mechanical engineering—these inserts deliver exceptional wear resistance, toughness, and cutting stability.

Key Technical Features

1. Premium Carbide Substrate

• 100% Original Tungsten Carbide Powder: Ensures superior density and homogeneity in the substrate.
• Enhanced Wear Resistance & Toughness: Optimized grain structure and binder phase mitigate micro-chipping and fracture, extending tool life in interrupted cuts and hard materials.

2. Advanced Coating Technology

• High-Performance CVD/PVD Coatings: Multi-layered nano-composite coatings (e.g., Al₂O₃/TiCN/TiN) provide:
• Ultra-Hard Surface (HV ≥3000) for abrasion resistance.
• Smooth Top Layer to reduce friction and built-up edge (BUE).
• Thermal Barrier Properties to withstand temperatures exceeding 1000°C.

3. Precision Geometry & Chip Control

• Engineered Chip-Breaker Designs: Patented geometries (e.g., multi-stage breakers) adapt to varying feed rates and materials, enabling:
• Predictable Chip Formation: Minimizes entanglement and heat generation.
• Optimal Swarf Evacuation: Critical for deep-hole drilling applications.
• Dimensional Accuracy: ±0.005 mm tolerance ensures seamless integration with standard U-Drill bodies.

4. Quality Assurance

• ISO 9001:2015 Certified Process: Full traceability from raw material to final inspection.
• Statistical Process Control (SPC): Monitors critical parameters (e.g., edge prep, coating thickness) for batch-to-batch consistency.

5. Performance Validation

• Extended Tool Life: 30–50% longer lifespan versus conventional inserts in ASTM D2 steel and Inconel 718 trials.
• Stable Cutting Parameters: Maintains surface finish (Ra ≤3.2 μm) at feeds up to 0.3 mm/rev.

Applications & Customization

Typical Use Cases

• Deep-Hole Drilling: Oil & gas valve bodies, hydraulic cylinders (ø20–80 mm).
• Hard Material Machining: Quenched steels (HRC 45–60), high-temperature alloys.
• High-Efficiency Production: Automotive crankshafts, wind turbine hubs.

Tailored Solutions

• Custom Geometries: Adapt chip-breakers for specific alloys (e.g., gummy aluminum vs. brittle cast iron).
• Specialized Coatings: PVD AlCrN for stainless steel; CVD MT-TiCN for high-speed operations.
• Branding & Packaging: Laser marking, custom blister packs, or bulk containers.

Why Choose Century Tool?

• Global Expertise: Products deployed in 50+ countries with technical support networks.
• Vertical Integration: In-house R&D, powder metallurgy, coating, and grinding facilities.
• Cost-Effective Performance: Reduces tooling costs per hole by 22% in benchmark studies.
